20" Wide Electric Coil Range
20" Wide Electric Coil Range
Regular Price
$1,535.00
Dimensions
Width: 20.0
Height: 36.0
Depth: 24.5
Color
Also Comes In
Black
Features
- Made in the USA - Designed and constructed domestically
- Slim 20 inch width - Apartment-sized width offers all the functionality you need in a smaller footprint
- 24 inch depth - Shallower fit is ideal for L-shaped and galley kitchens
- Stainless steel finish - Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- Professional towel bar handles - Curved handles in brushed stainless steel offer an easier grip in attractive style
- Slide-in look - Low backguard trimmed in stainless steel makes it easier to integrate your own backsplash design
- Storage compartment - Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Four coil elements - Includes one 8" and three 6" coil elements
- Safety burners with low wattage outputs - Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Chrome drip pans - Each coil element includes a removable chrome pan for easier cleaning
- Oven window and interior lighting - Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Waist-high broiler - Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Adjustable oven racks - Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Porcelain and steel construction - Solid construction built to hold up to everyday use
- Recessed oven door - Smart design limits the depth and protects adjacent cabinets
- Upfront controls - All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Push-to-turn knobs - Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Indicator lights - Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Removable oven door and range top - Allows for easier cleaning as needed
- Broiler pan included - Two-piece porcelain broiler tray with grease well
- Anti-tip bracket - Included for user installation to help prevent tipping Cord not included - Compatible with standard 40 amp 3 or 4-wire range cords
- ADA compliant - Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Product Description

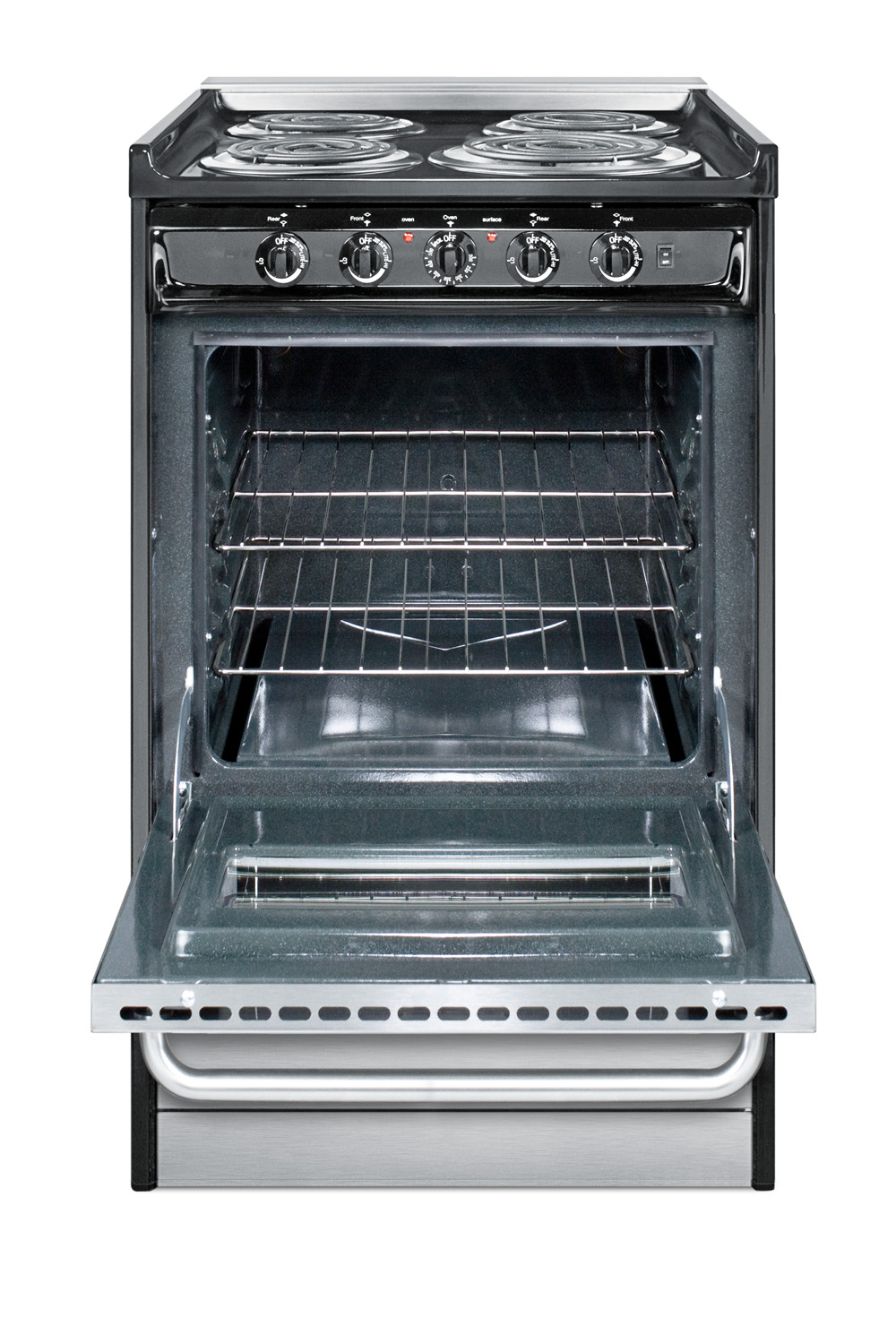

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM110BRWY is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The low stainless steel trimmed backguard creates a slide-in look, allowing you to customize the space behind your range in the style of your choice. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.
Specification
| Cabinet | |
| Cabinet | Black |
| Cooking Timer | |
| Cooking Timer | Yes |
| Cooktop Surface | |
| Cooktop Surface | Porcelain |
| Depth | |
| Depth | 24.5" (62 cm) |
| Element 1 Wattage | |
| Element #1 Wattage | 1200.0 |
| Element 2 Wattage | |
| Element #2 Wattage | 1200.0 |
| Element 3 Wattage | |
| Element #3 Wattage | 1200.0 |
| Element 4 Wattage | |
| Element #4 Wattage | 2100.0 |
| Height of Cabinet | |
| Height of Cabinet | 36.0" (91 cm) |
| Number of Elements | |
| Number of Elements | 4 |
| Oven Controls | |
| Oven Controls | Dial |
| Oven Interior Depth | |
| Oven Interior Depth | 19.0" (48 cm) |
| Oven Interior Height | |
| Oven Interior Height | 14.0" (36 cm) |
| Parts & Labor Warranty | |
| Parts & Labor Warranty | 1 Year |
| Weight | |
| Weight | 125.0 lbs. (57 kg) |
