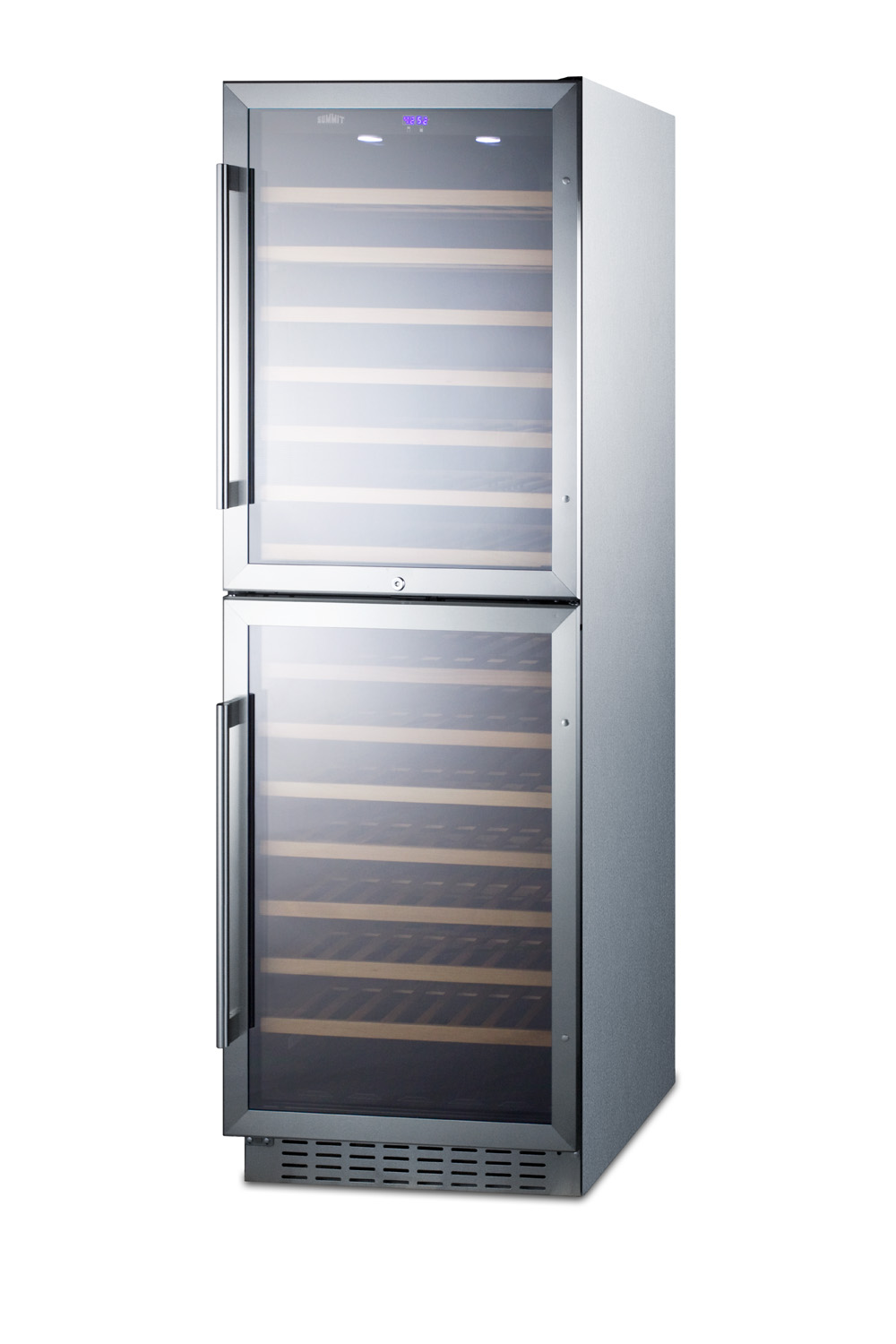

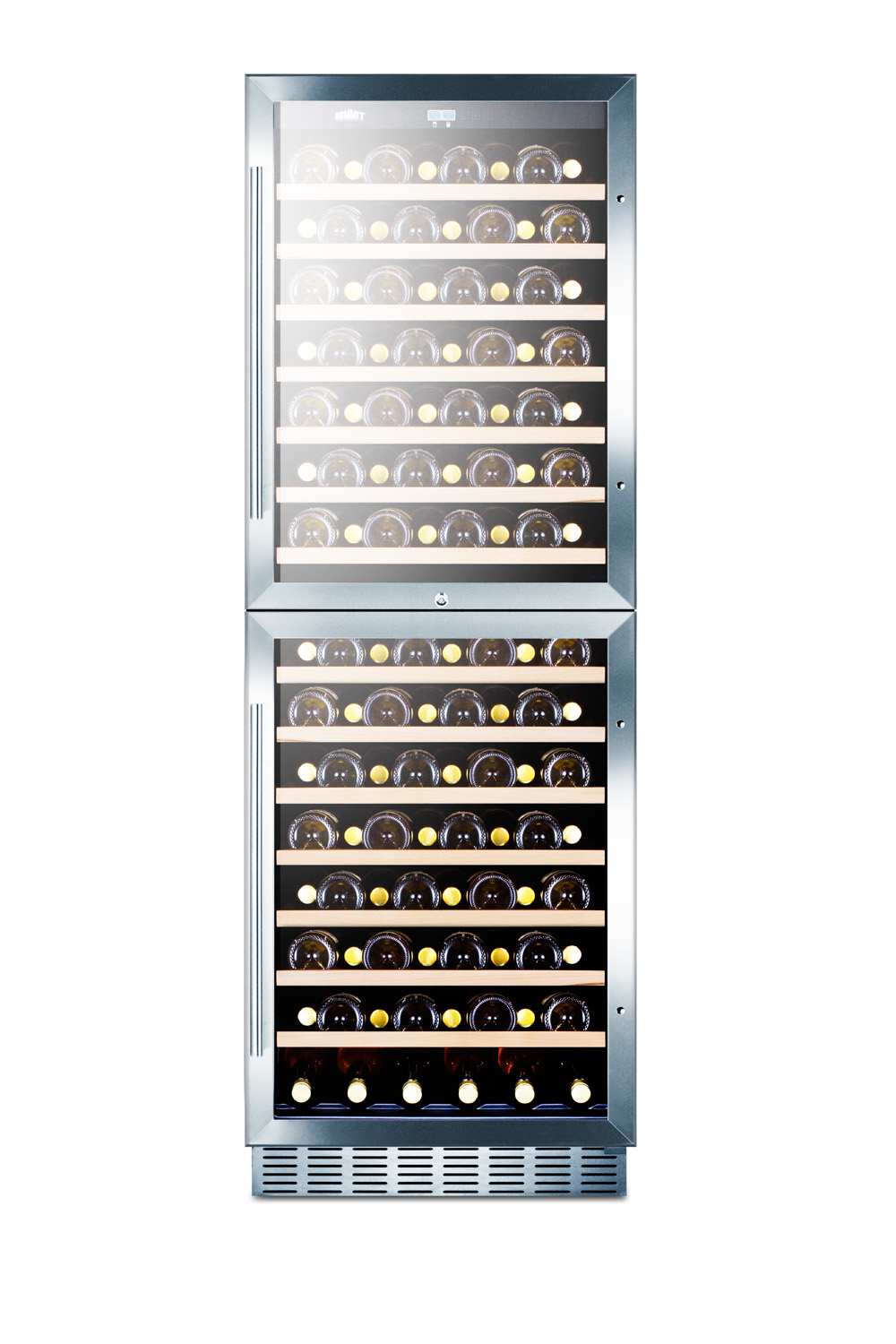

24" Wide Wine Cellar

Built-in capable

• Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top

Stainless steel wrapped cabinet

• Exterior features 304 grade stainless steel for true luxury built to last

Large capacity

• Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles

Two temperature zones

• Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below

Two reversible glass doors

• Elegant tint with user-reversible convenience and stainless steel trim

Digital thermostat

• Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

Factory installed lock

• Keyed lock secures both sections

Recessed LED lighting

• Attractive and energy efficient illumination for your collection

Slide-out wooden shelving

• 14 easy gliding shelves

Automatic defrost

• Reduced maintenance with auto defrost system

Professional handles

• Sturdy chrome handles add a professional look

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 96 hours

Stainless steel kickplate

• An added touch of elegance

Temperature range

• 40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC Free

• Environmentally friendly design with no ozone-damaging chemicals

Door
T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models	T2F Door Tint Tinted door in reflective deep blue finish with high energy savings
T3F Door Tint Reflective door tint in light blue finish for medium energy savings	T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings

Exterior
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD Door reversal to left hand swing
KEY Extra keys available for purchase	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Overview
Height of Cabinet	69.63" (177 cm)
Width	23.63" (60 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	44.75" (114 cm)
Bottles	118 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Shipping Weight	215.0 lbs. (98 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years

Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	14
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.07 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	27.75" (70 cm)
Interior Width 1	20.0" (51 cm)
Interior Depth 1	17.5" (44 cm)
Temperature Range	41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2	31.0" (79 cm)
Interior Width 2	20.0" (51 cm)
Interior Depth 2	17.5" (44 cm)

• Spec Sheet

• Use and Care Manual
