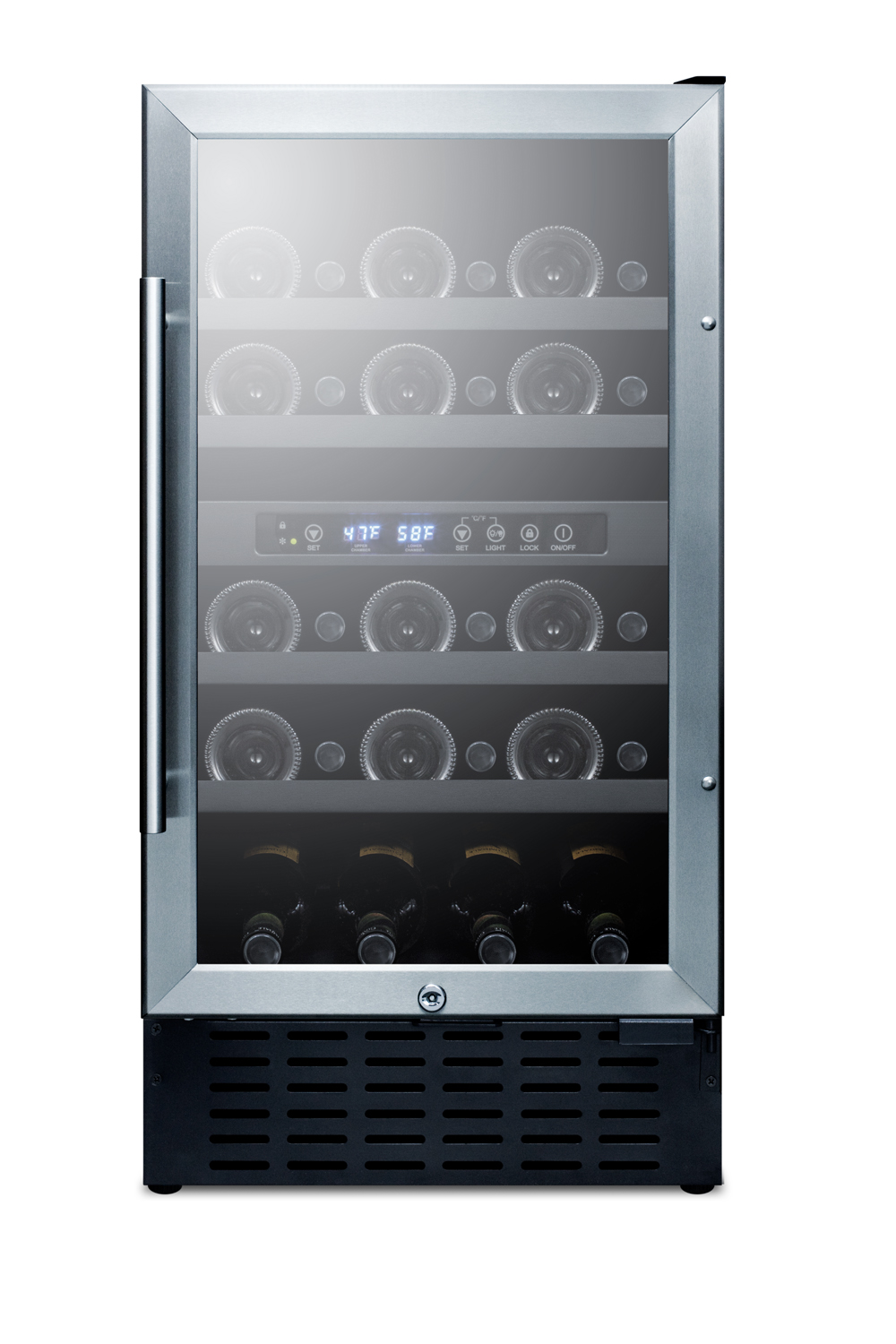

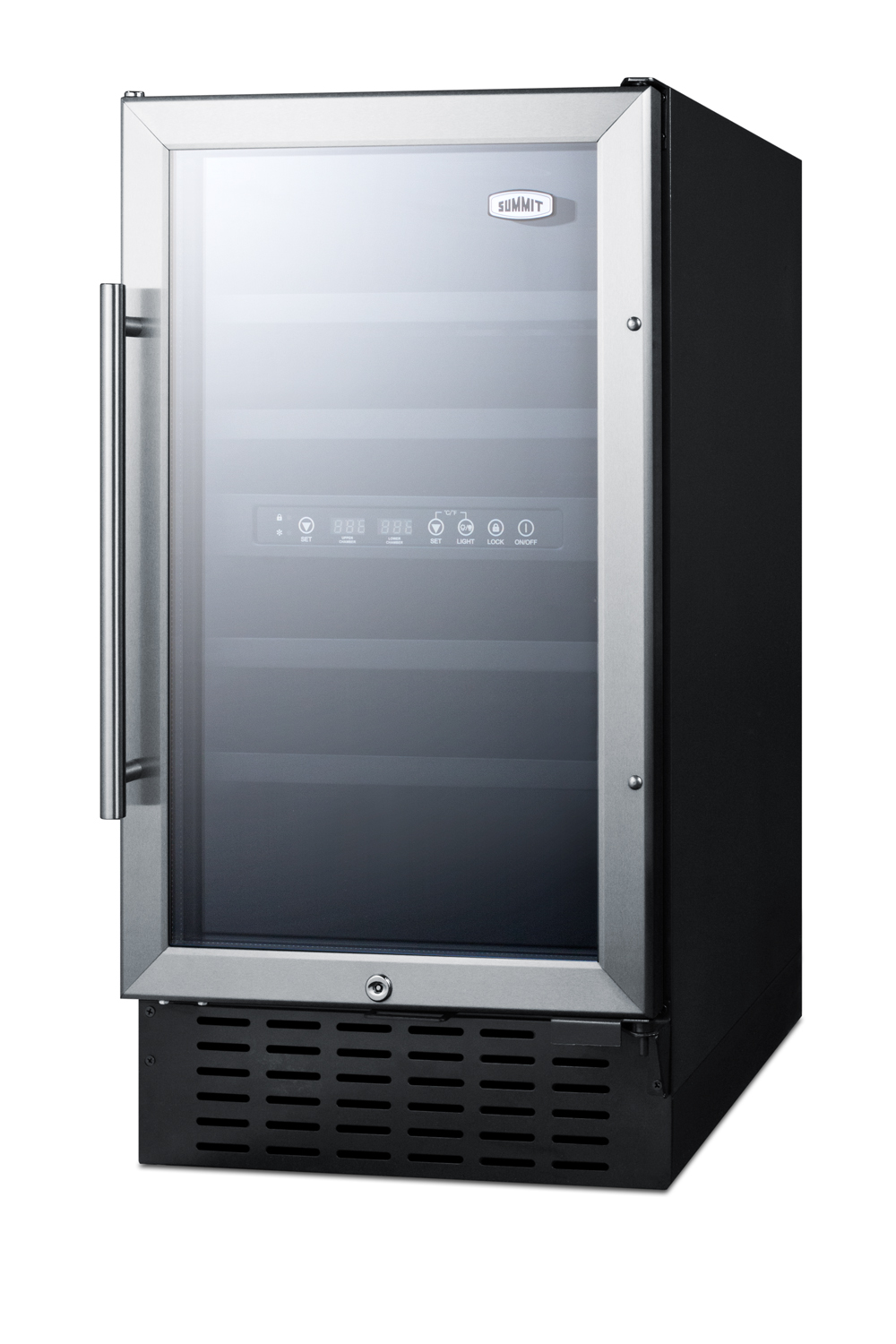

18" Wide Built-In Wine Cellar, ADA Compliant
Regular Price
$1,630.00
Dimensions
Width: 17.75
Height: 31.63
Depth: 23.5
Color
Features
- Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
- 32" height is designed to fit under lower ADA compliant counters
- Make the best use of space by installing your appliance under the counter
- Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
- Provides a full display of stored contents with a heat-safe double tempered design
- Keyed lock for a secure interior, with 2 keys included
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Gentle illumination for each temperature zone for an elegant presentation
- Reduced maintenance with the convenience of auto defrost
- 4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
- Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Stainless steel handle completes the look
- Space saving design
- Hinge is flush with cabinet, adding no additional height to the unit
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
Product Description
Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.
Specification
Door | |
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings | T3 Door Tint Reflective door tint in light blue finish for medium energy savings |
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings | T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings |
Exterior | |
SSK Stainless steel kickplate factory installed | KEY Extra keys available for purchase |
LHD Door reversal to left hand swing | Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
Overview | |
Height of Cabinet | 31.63" (80 cm) |
Width | 17.75" (45 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.25" (64 cm) |
Depth with door at 90° | 39.75" (101 cm) |
Capacity | 3.3 cu.ft. (93 L) |
Bottles | 28 bottles |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Wine Cellar | |
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Shelf Type | Wood |
Shelf Qty | 4 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 10.63" (27 cm) |
Interior Width 1 | 14.25" (36 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Compressor Step Height | 5.25" (13 cm) |
Compressor Step Width | 14.25" (36 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 41º to 64ºF |
Interior Height 2 | 12.25" (31 cm) |
Interior Width 2 | 14.25" (36 cm) |
Interior Depth 2 | 18.0" (46 cm) |
