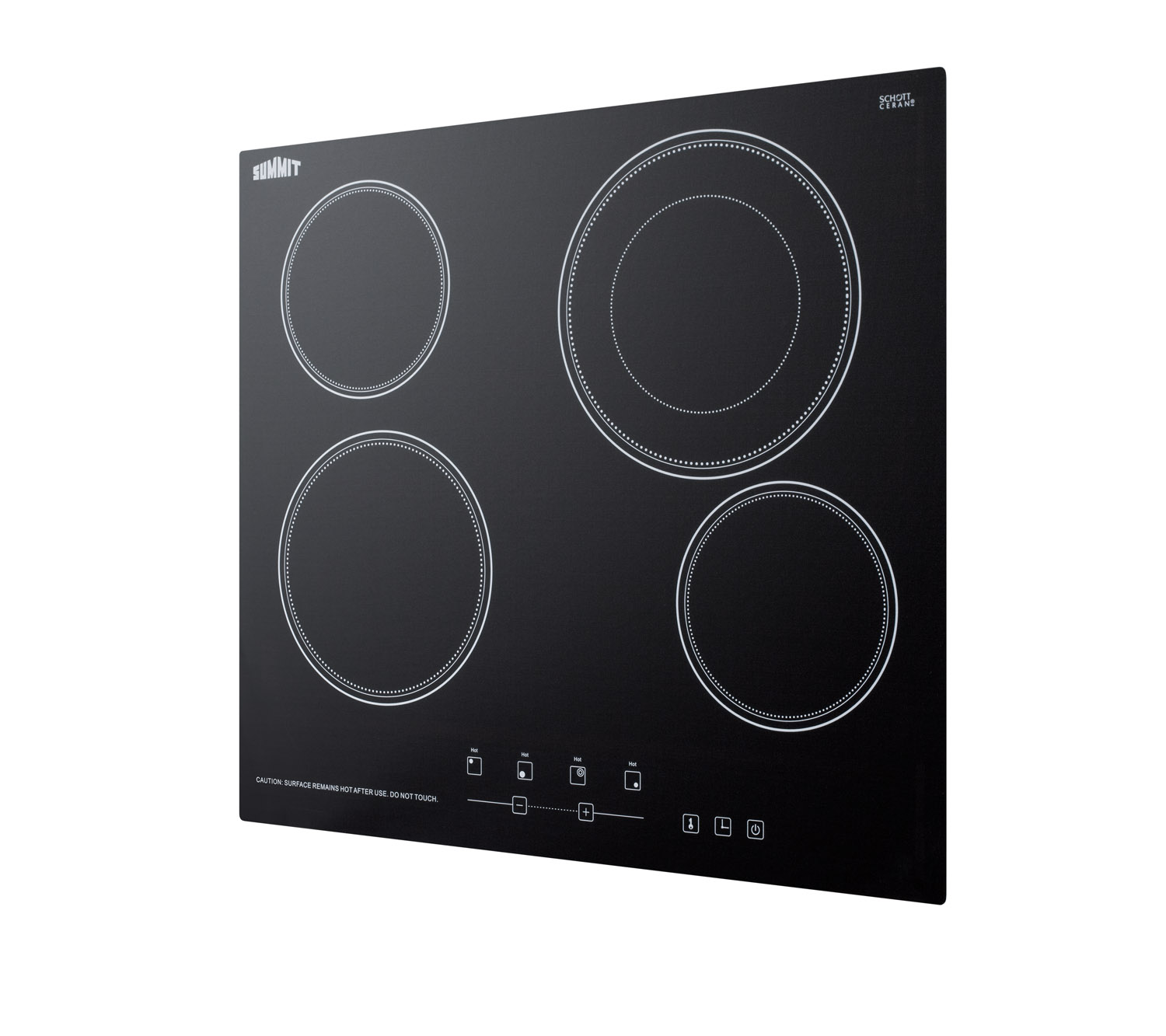

24" Wide 230V 4-Burner Radiant Cooktop

Schott glass surface

• Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Extra large 2200W burner

• Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed

Large 1800W burner

• Burner located on the front left corner is 7" in diameter to handle larger cooking vessels

2 Standard 1200W burners

• Front right and rear left burners are 5.5" in diameter to meet most cooking needs

Dual cooking zone

• Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

Digital touch controls

• Easy operation with a digital control panel and digital display

9 power levels

• Select and adjust your heating levels at the touch of a button

Timer

• Allows you to program either burner to heat at a specified level for up to 99 minutes

Residual heat indicator lights

• Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation

• Fits counter cutout sizes that are 22" wide by 19.5" deep

ADA compliant design

• Upfront controls meet ADA guidelines for easier accessibilty

Child lock

• Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

• If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

• If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation

• Requires professional hardwired installation to 230V power supply

Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	4
controls	Digital
Countertop Cutout Height	3.2" (8 cm)
Countertop Cutout Width	22.0" (56 cm)
Countertop Cutout Depth	19.5" (50 cm)
Element #1 Size	5.5" (14 cm)
Element #1 Wattage	1200.0
Element #2 Size	8.1" (21 cm)
Element #2 Wattage	2200.0
Element #3 Size	5.5" (14 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.0" (18 cm)
Element #4 Wattage	1800.0

Overview
Height of Cabinet	2.0" (5 cm)
Width	23.25" (59 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	30.0
Voltage/Frequency	230 V AC/60 Hz
Weight	20.0 lbs. (9 kg)
Shipping Weight	22.0 lbs. (10 kg)
Parts & Labor Warranty	1 Year

• Use and Care Manual

• Spec Sheet
