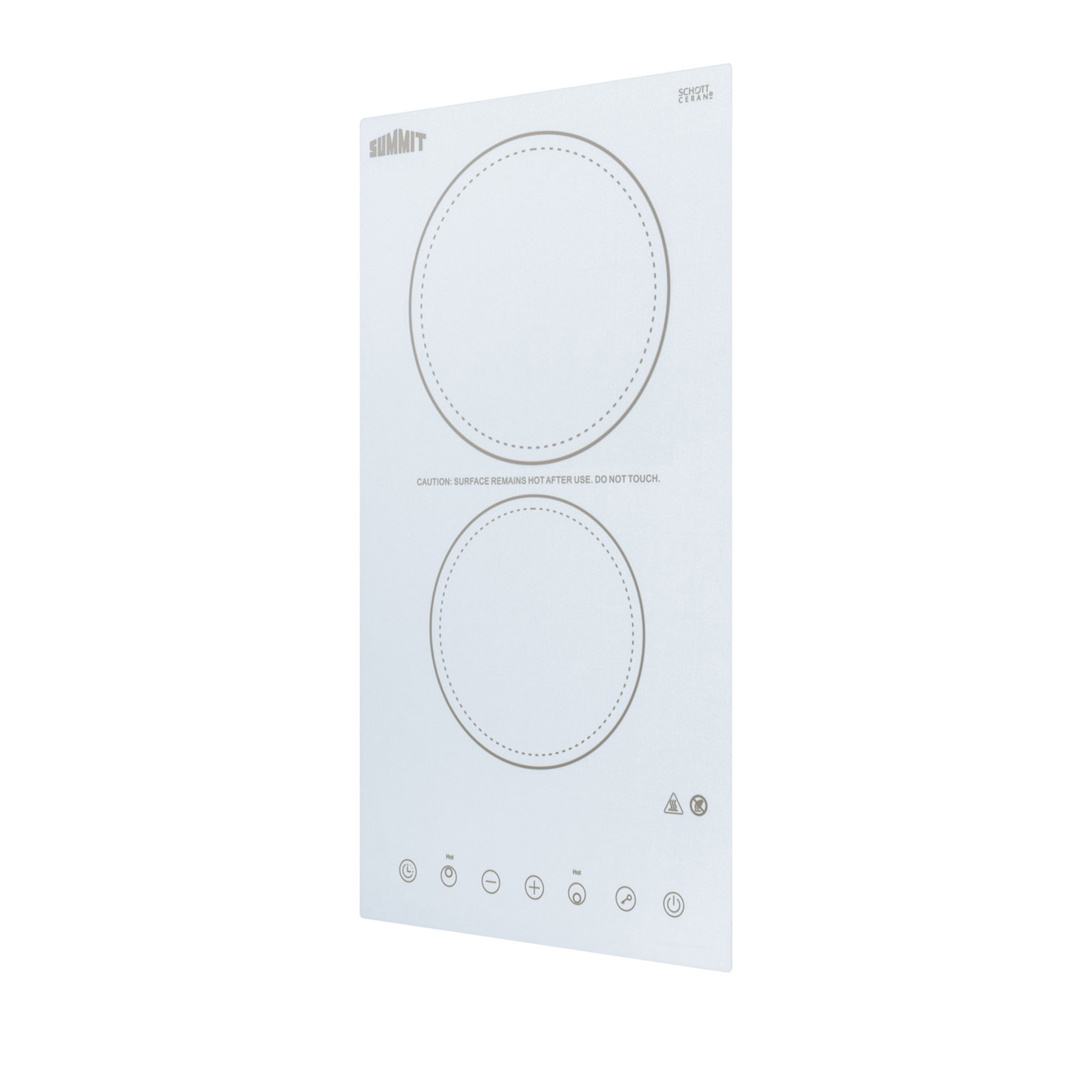

12" Wide 230V 2-Burner Radiant Cooktop

Schott glass surface

• Made in Germany, the white Schott glass offers easier cleanup and lasting durabilty

Large 1800W burner

• Rear 7" burner offers 1800W for faster heating of larger cooking vessels

Standard 1200W burner

• Front burner is 5.5" in diameter to meet most cooking needs

Digital touch controls

• Easy operation with a digital control panel and digital display

9 power levels

• Select and adjust your heating levels at the touch of a button

Residual heat indicator lights

• Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation

• Fits counter cutout sizes that are 10.75" wide by 19.9" deep

ADA compliant design

• Upfront controls meet ADA guidelines for easier accessibilty

Timer

• Allows you to program either burner to heat at a specified level for up to 99 minutes

Child lock

• Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

• If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

• If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation

• Requires professional hardwired installation to 230V power supply

Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	5.9" (15 cm)
Countertop Cutout Width	10.75" (27 cm)
Countertop Cutout Depth	19.9" (51 cm)
Power Source	230V
Element #1 Size	7.0" (18 cm)
Element #1 Wattage	1800.0
Element #2 Size	5.5" (14 cm)
Element #2 Wattage	1200.0

Overview
Height of Cabinet	2.0" (5 cm)
Width	11.38" (29 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	230 V AC/60 Hz
Weight	10.0 lbs. (5 kg)
Shipping Weight	12.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
