24" Wide Built-In Beverage Center, ADA Compliant
Regular Price
$2,305.00
Dimensions
Depth: 22.63
Width: 23.63
Height: 32
Color
Features
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Keyed lock for a secure interior
- Stainless steel trimmed glass door offers a heat-safe view of the interior
- Stainless steel exterior for a professional look with lasting durability
- Stainless steel handle completes the look
- No-frost operation for minimum user maintenance
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- User-reversible door swing for added flexibility
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Space-saving design that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
Product Description

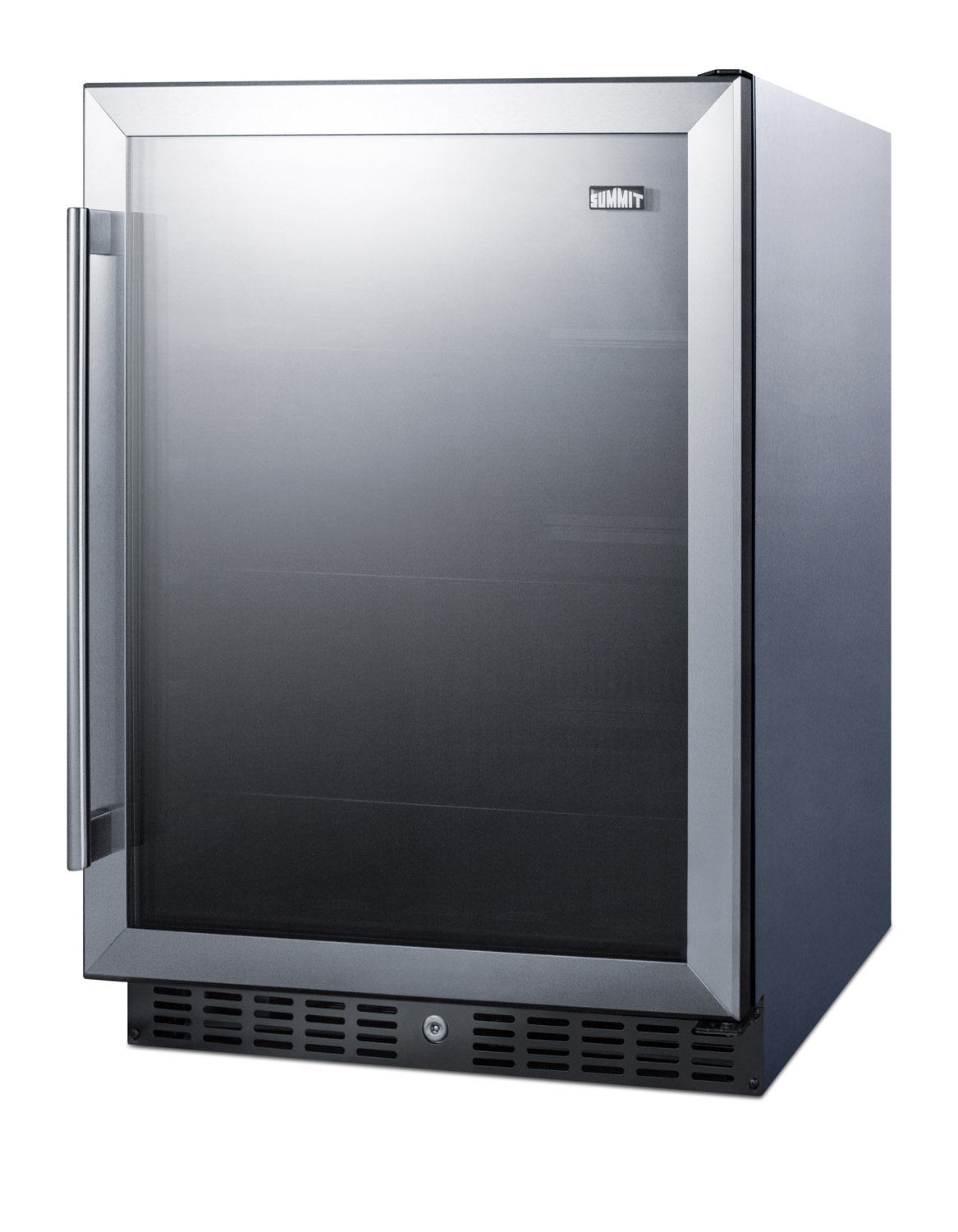

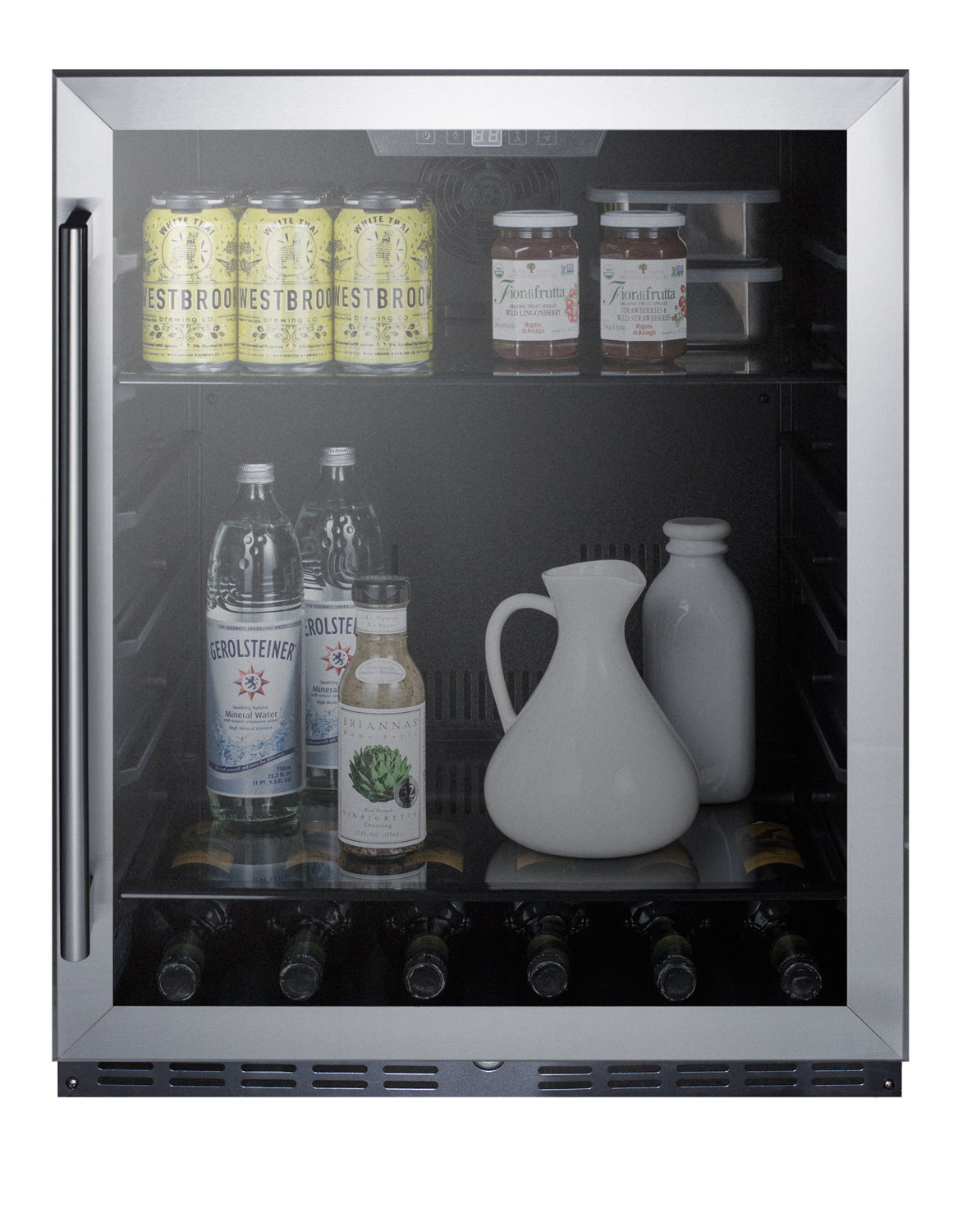

Sized with a convenient 24" footprint, the AL57GCSS is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The wrapped stainless steel cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory-installed lock in the kickplate offers additional security. The flush back
Specification
Dimensions | |
Interior Height | 25.0" (64 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 17.5" (44 cm) |
Compressor Step Height | 3.25" (8 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.25" (13 cm) |
Exterior | |
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. | LHD Door reversal to left hand swing |
KEY Extra keys available for purchase | T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings |
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings | T3 Door Tint Reflective door tint in light blue finish for medium energy savings |
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings | T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings |
Overview | |
Height of Cabinet | 32.0" (81 cm) |
Width | 23.63" (60 cm) |
Depth | 22.63" (57 cm) |
Depth with Handle | 24.63" (63 cm) |
Depth with door at 90° | 45.0" (114 cm) |
Capacity | 5.0 cu.ft. (142 L) |
Defrost Type | Frost-Free |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 to 43ºF |
