24" Wide Built-In All-Refrigerator, ADA Compliant

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Front-breathing design lets you make the best use of space by installing your appliance under the counter

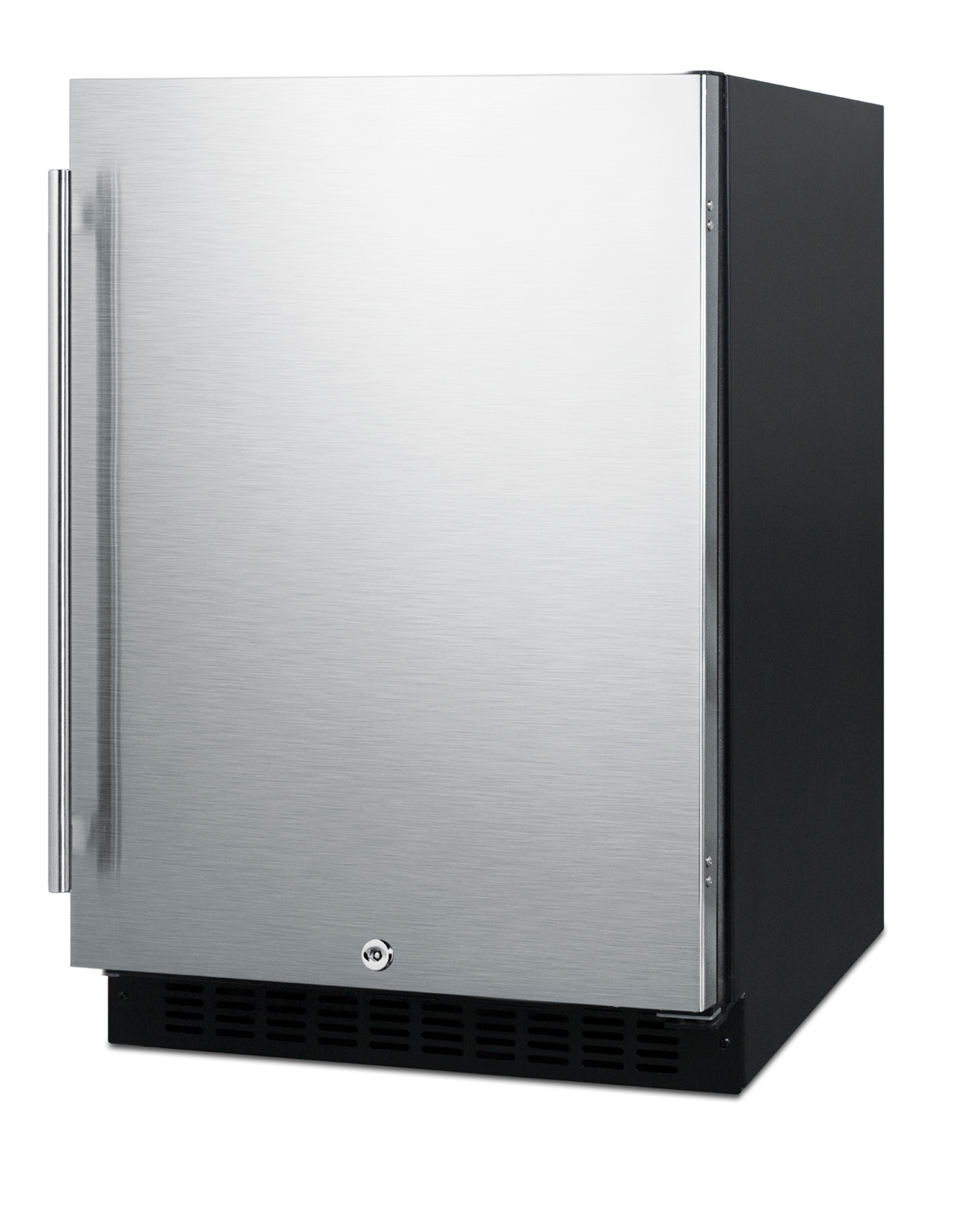

Stainless steel door

• Durable construction with a professional look

Factory installed lock

• Keyed lock for a secure interior

Professional handle

• Includes a full-length pro handle in chrome

Frost-free operation

• No-frost operation for minimum user maintenance

Digital thermostat

• Electronic controls located inside the unit for precise temperature management

Recessed LED light

• Efficient and attractive presentation with LED lighting

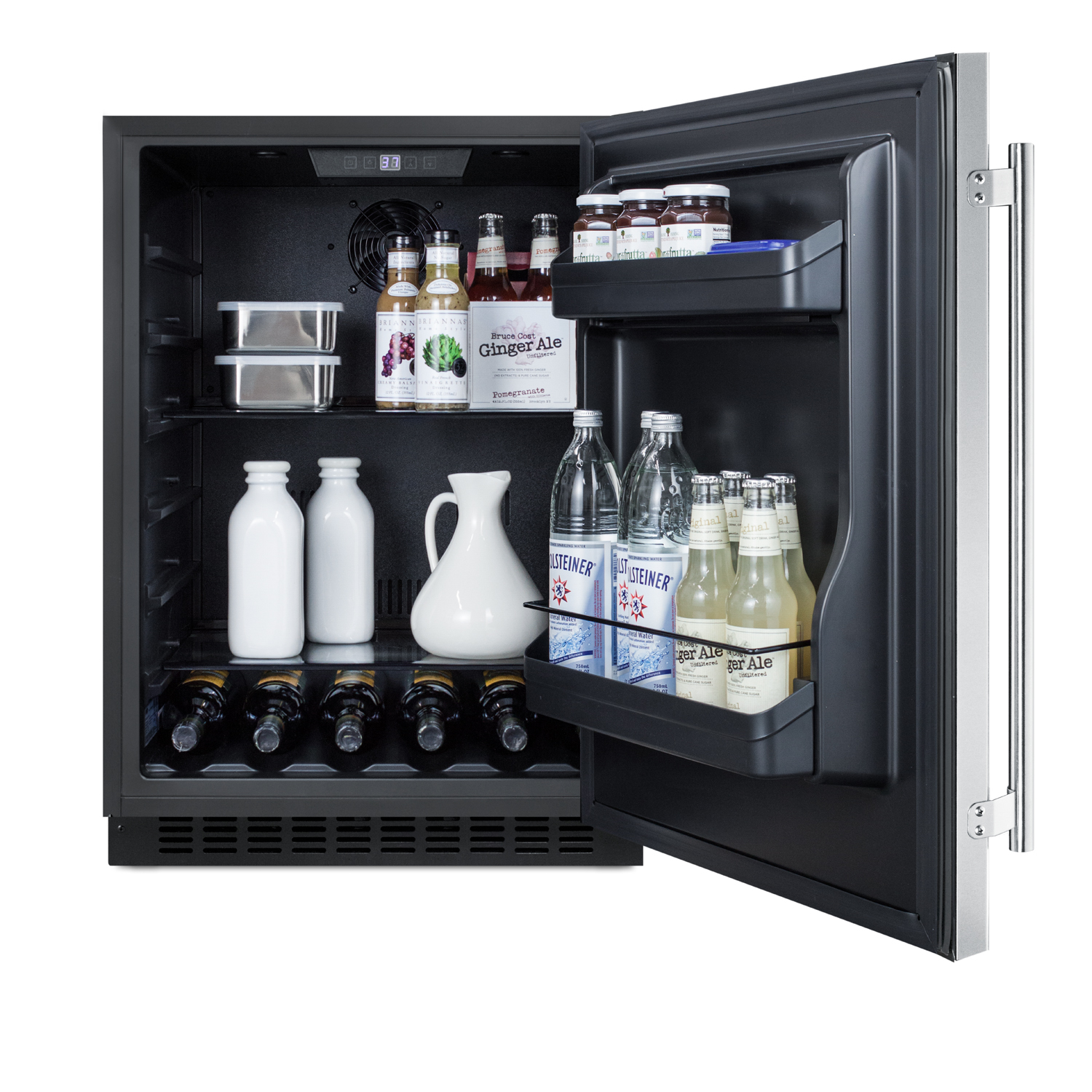

Adjustable glass shelves

• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

• Two door racks offer convenient storage for condiments and bottles

Bottle slots

• Floor is specially slotted to store wine and other bottles safely in place

Internal fan

• Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door

• User-reversible door swing for added flexibility

Open door alarm

• Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

• High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 96 hours

Temperature Memory Function

• Unit will retain its last settings when power is restored in the event of power loss

Sealed back

• Space-saving design that offers easier cleanability

Right angle plug

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Commercially approved

• ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished black cabinet

• Allows the unit to be used freestanding

100% CFC Free

• Environmentally friendly design with no ozone-damaging chemicals

Dimensions
Interior Height	25.0" (64 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.25" (13 cm)

Exterior
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD Door reversal to left hand swing

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.63" (60 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	4.8 cu.ft. (136 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	250.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years

Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF

• Energy Guide

• Spec Sheet

• Use and Care Manual
